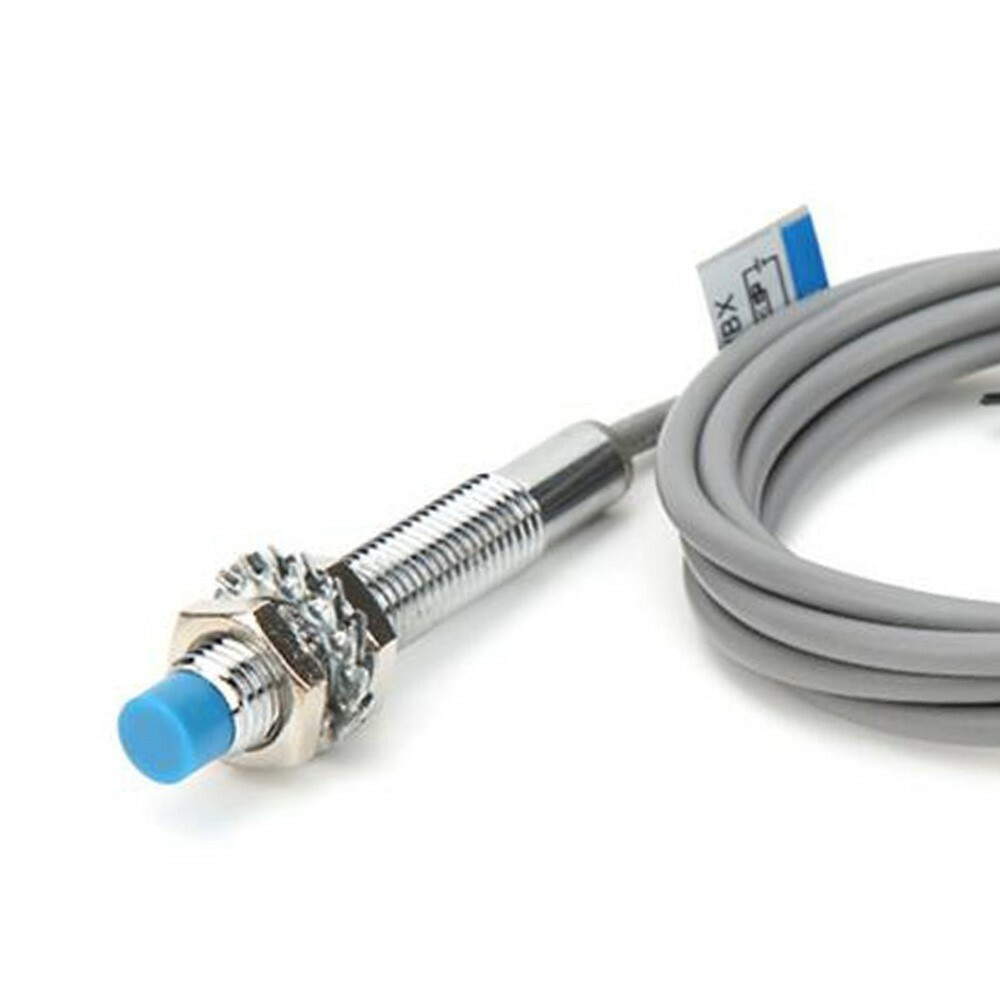

1x M8 PNP NO Induktiver Näherungssensor Schalter 6-36 VDC LJ8A3-2-Z/BY 8 mm

8,40 €

M8 cylindrical NPN inductive proximity switch normally open (NO). Inductive proximity switch. Standard test object: low carbon steel (12x12x1mm). Reverse connection protection: Yes. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

Jetzt bei Ebay:

Zum Angebot *

Brand:

Unbranded
Package Contents:

1*Inductive proximity switch
Model:

LJ8A3-2-Z/BX
Dimensions:

M8x50
Installation type:

shield
Detection distance:

2mm
Power supply voltage:

6-36Vdc
Output current:

DC max 300mA
AC type:

400mA
Standard test object:

low carbon steel (12x12x1mm)
Sensing object:

magnetic metal
Response frequency:

500Hz
Output indication:

red LED
Short circuit protection:

NO
Reverse connection protection:

Yes
Insulation resistance:

50MΩ minimum
Dielectric strength:

1000Vac, 1 minute
Protection level:

IP65
Operating temperature:

25 to 70°C (13 to 158°F)
Cable length:

1.2m, PVC cable
Material:

Case brass nickel plated
Sensing surface:

ABS
