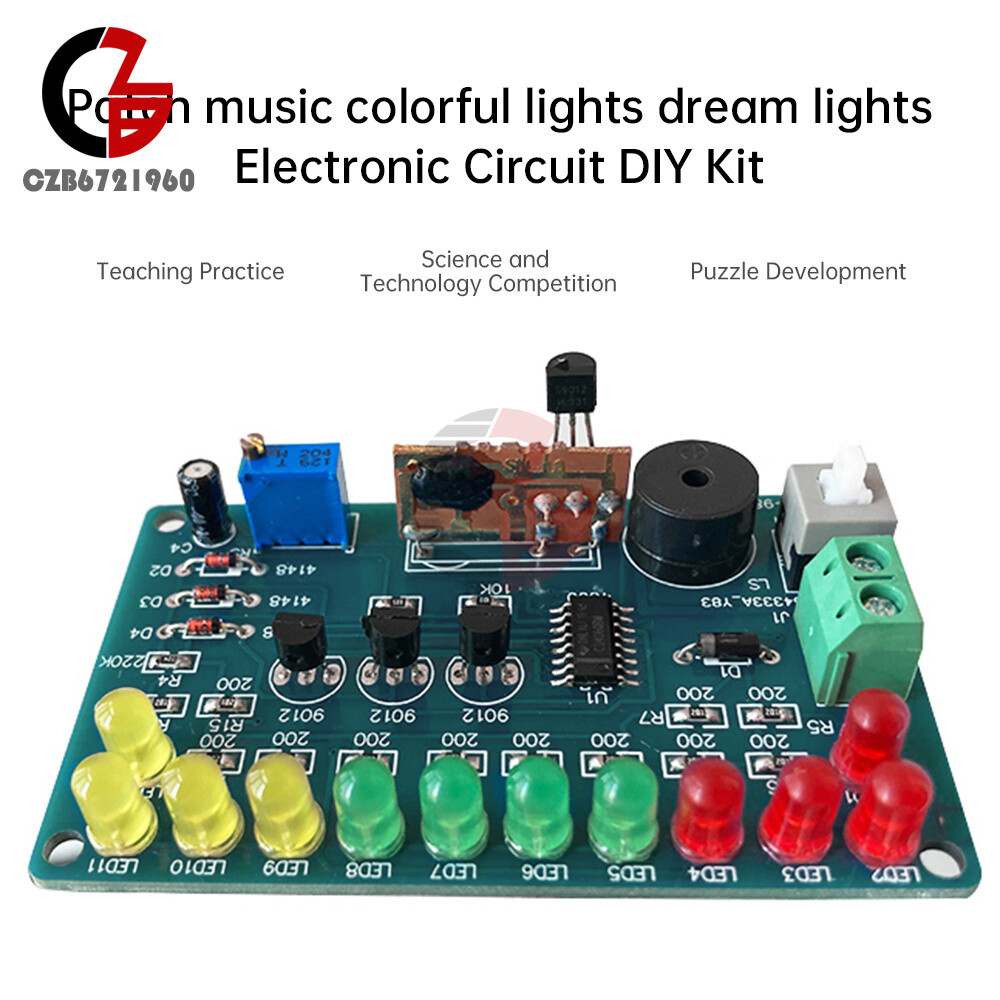

Zum Selbermachen Kit CD4060 SMD Musik LED Farbe Lichter Schaltung Löten Traum Licht Modul
3,59 €
In the circuit, resistors R1, R2, R3 and electrolytic capacitor C4 CD4060 RC oscillation peripheral circuit, change R3 can change the frequency of the oscillation circuit. The circuit selected Q5-06 three outputs, when the pin outputs a low level, and the connection of the transistor conduction, connected to the transistor emitting school LED light.
